HIGHLIGHTS

• U.S. Registered
• Airframe & Engines Under Warranty
• Rolls Royce Corporate Care enrolment available
• APU on Honeywell MSP
• FANS-1/A+ / CPDLC / ADS-B Out / LINK 2000+
• Collins Aerospace Venue™ Cabin Management System & 4K / HD Entertainment System
• Honeywell JetWave Ka-Band High-Speed Internet
• Undergoing 15 Month Inspection at Execujet

AIRFRAME

Certificate of Airworthiness:	26nd April 2022
Entry Into Service:	01st December 2022
Certification:	FAA Part 91
Total Time Since New:	1,400 Hours
Total Landings Since New:	424
New Aircraft Warranty:	Manufactured Parts/Vendor Parts/Avionics until November 2027 Structure until November 2042

ENGINES

Manufacturer:	Rolls Royce
Model:	Pearl 15
	ENGINE 1 (LEFT)	ENGINE 2 (RIGHT)
Serial Number:	56131	56132
Total Time Since New:	1,400 Hours	1,400 Hours
Total Cycles Since New:	424	424
Engine Warranty:	6 Years / 3,500 Hours
Program Coverage:	Rolls Royce Corporate Care enrolment available

APU

Manufacturer:	Honeywell
Model:	RE220 (GX)
Serial Number:	P-1088
Total Time Since New:	825 Hours
Total Cycles Since New:	592
Program Coverage:	Enrolled on Honeywell MSP

AVIONICS

Bombardier Vision Flight Deck (Collins Pro Line Fusion)

TYPE OF UNIT	QUANTITY	DESCRIPTION
EFIS (Electronic Flight Instrument System)	Quad	Rockwell Collins / Collins Aerospace, AFD-6520
IFIS (Integrated Flight Information System)	Dual	Collins Aerospace, Integrated IFIS / Pro Line Fusion
FMS (Flight Management System)	Triple	Collins Aerospace, Integrated FMS / Pro Line Fusion
GPS (Global Positioning System)	Dual	Rockwell Collins, GPS-4000S
ADC (Air Data Computer)	Triple	Rockwell Collins, ADC-3020
NAV (Navigation Radio)	Dual	Rockwell Collins, NAV-4000
IRS (Inertial Reference System)	Triple	Honeywell, IR-600 / LASEREF VI
DME (Distance Measuring Equipment)	Dual	Rockwell Collins, DME-4000
EFB (Electronic Flight Bag)	Dual	Bombardier, cockpit tablet EFB holders / integrated EFB provision
EVS (Enhanced Vision System)	Single	Collins/Bombardier EVS, Infrared Sensor Unit P/N 1500-3180-002
HUGS (Head Up Guidance System)	Single	Collins Aerospace, OHU-6600 / CMB-6600
SVS (Synthetic Vision System)	Single	Rockwell Collins, SVM-6110H
ADF (Automatic Direction Finder)	Dual	Rockwell Collins, integrated in NAV-4000
FLT DIR (Flight Director)	Dual	Rockwell Collins, Integrated AFCS
A/P (Autopilot)	Dual	Rockwell Collins, Integrated AFCS
VHF COM (Very High Freq. Communication)	Triple	Rockwell Collins, VHF-4000
HF COM (High Freq. Communications)	Dual	Rockwell Collins, HF-9031A
SATCOM (Satellite Communications)	Single	Rockwell Collins, SDU-2200-2
RADAR	Single	Rockwell Collins, RTA-4118 MultiScan Weather Radar
RAD ALT (Radio Altimeter)	Dual	Rockwell Collins, ALT-4000
XPNDR (Transponder)	Single	Rockwell Collins, TDR-94D Diversity Transponder

CAPABILITIES

• FANS-1/A+
• CPDLC
• ADS-B Out DO-260B
• TCAS 7.1
• WAAS/LPV
• RVSM/RNP5/RNP10
• LINK 2000+

ENTERTAINMENT & CONNECTIVITY

• Collins Aerospace Venue™ Cabin Management System
• Collins Aerospace Venue™ 4K / HD Entertainment System (HDAV-6000 architecture)
• Honeywell Aspire 100 – Dual-Channel Iridium Telephone System
• Honeywell JetWave Ka-Band High-Speed Internet / Collins WAP-100 WiFi
• Two (2) Collins Aerospace UHDM-7024, 24-inch 4K monitors
• HDMI Port
• Plug-in Tablet Holder Receptacle under Nesting Lid
• Subwoofer

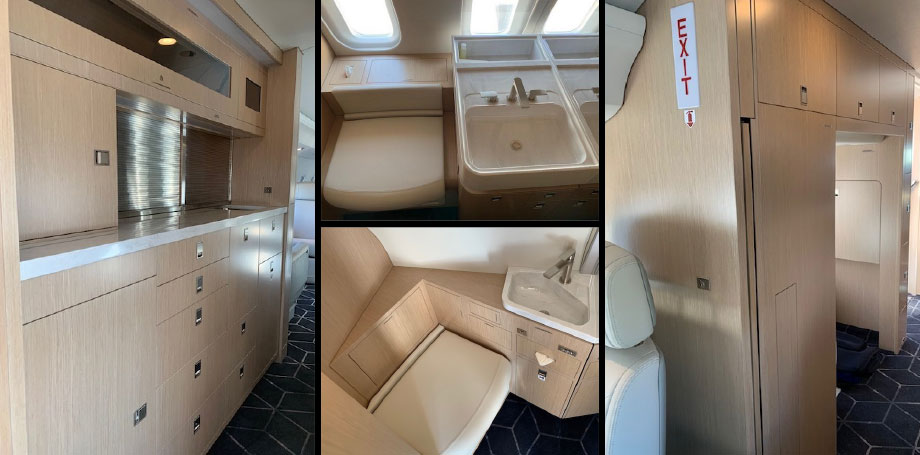

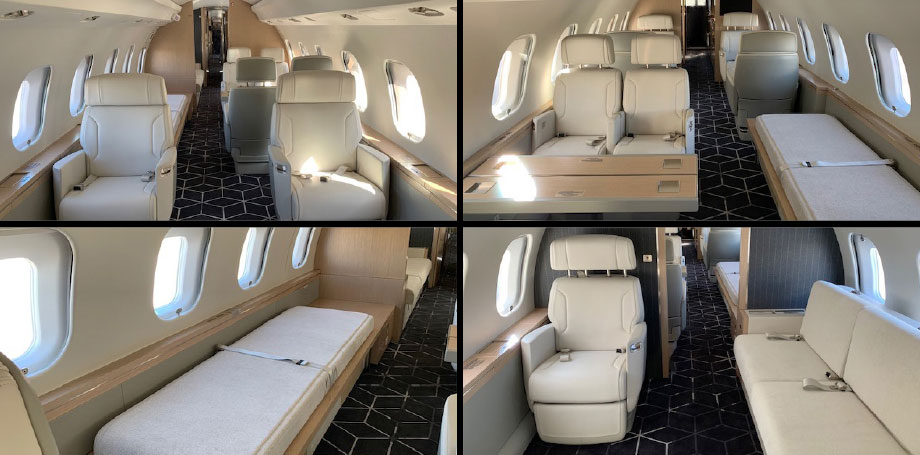

INTERIOR

Number of Passenger Seats:	13 (12 Certified for Take-Off & Landing)
Number of Berthable Seats:	6 + 3-Place Berthable Divan
Galley:	Forward
Lavatories:	Forward Crew & Aft Passenger
Jump seat:	Yes
Crew rest:	Forward

MATERIALS

Seats:	Townsend Classic Cowhide Leather – Sheer Mist / Pussy Willow
Wood:	Light Grey Oak Recon Veneer – Satin 20 Finish
Divan Fabric:	Larsen “Curtis” – Beige
Metal:	Satin Nickel Plating – Techno Aerospace TC-40(S)
Headliner:	Ultraleather Classic Grey – Tapis
Carpet:	Tai Ping “Janus” – Custom Multi-Tone, 99% Wool / 1% Dull Silk

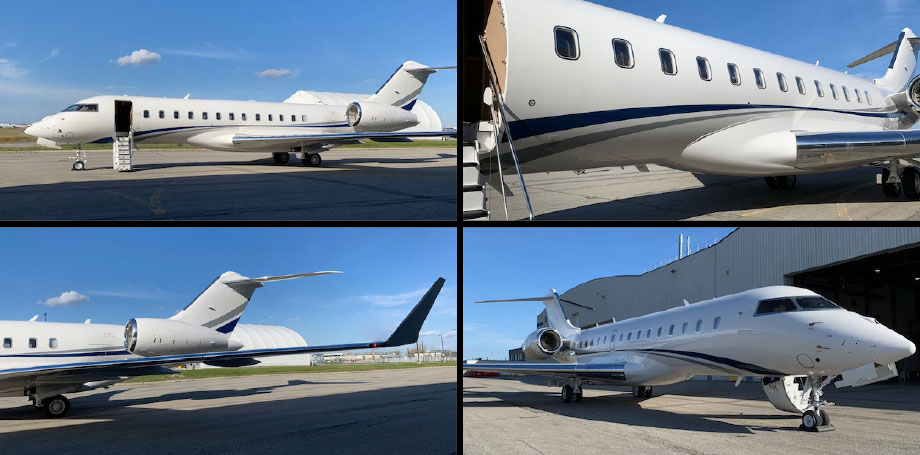

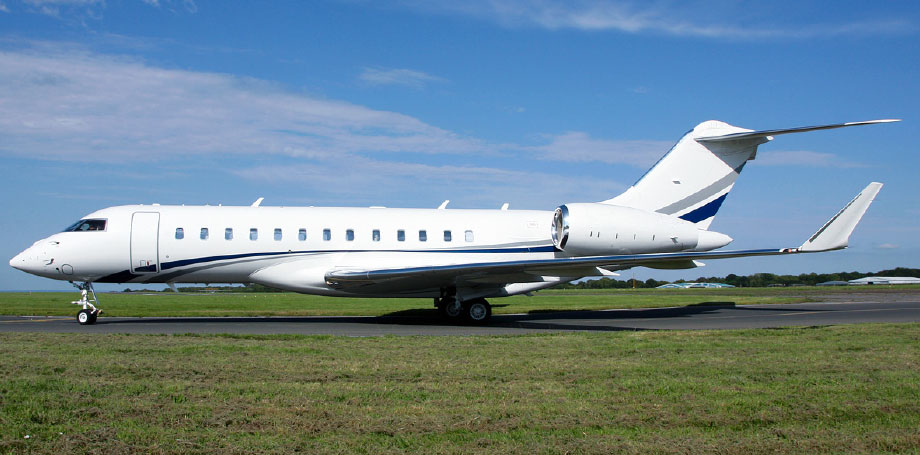

EXTERIOR

Base Paint Colour:

Matterhorn White

MAINTENANCE

• Undergoing 15 Month Inspection at Execujet

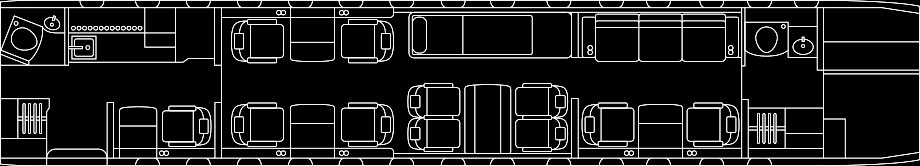

FLOORPLAN
