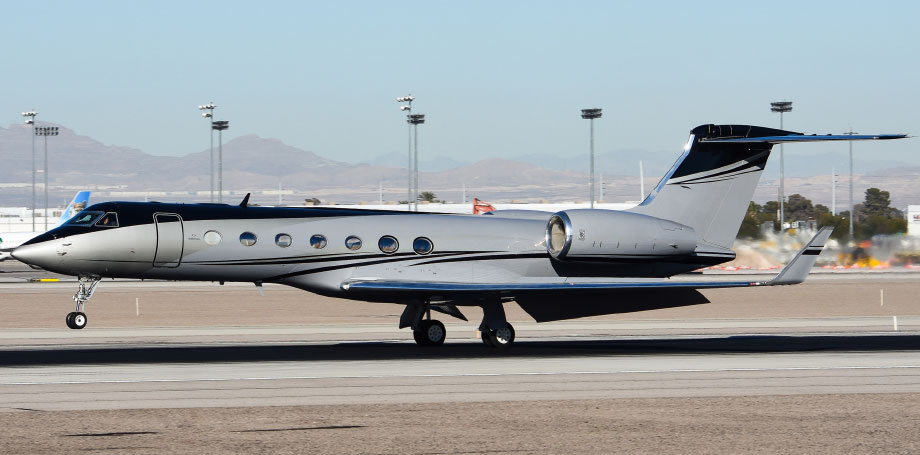

2006 GULFSTREAM G550
SERIAL NUMBER 5110
HIGHLIGHTS
- Will deliver with a fresh 48 Month Inspection
- Always Hangared at Home Base
- Engines on Rolls Royce Corporate Care
- APU on Honeywell MSP Gold
- New state-of-the-art DPI Labs ‘Evolve’ Cabin Management System which interfaces with AVDS HD video backbone, Alto Audio with Sky Cinema Dolby, and a Flight Map 3D moving map system
- Viasat KA Band installed 2022 by Brunswick Aviation
- Seats, Windowline, Carpet, Dados and Countertops refurbished 2022 by International Jet Interiors
- New paint 2022 by Duncan Aviation
- 192 Month Inspection completed 2022
- FAA Part 135 Charter / Forward Crew Rest
- CPDLC / FANS-1/A
- HUD & EVS
- New Galley Carpet
AIRFRAME
| Certificate of Airworthiness: | 15th April 2006 |
| Entry Into Service: | 20th October 2006 |
| Certification: | FAA Part 135 |
| Total Time Since New: | 7,209 Hours |
| Total Landings Since New: | 4,120 |
| (as of August 2025) | |
| Maintenance Tracking: | CMP |
ENGINES
| Manufacturer: | Rolls Royce | |
| Model: | BR700-710C4-11 | |
| ENGINE 1 (LEFT) | ENGINE 2 (RIGHT) | |
| Serial Number: | 15323 | 15320 |
| Total Time Since New: | 7,129 Hours | 7,129 Hours |
| Total Cycles Since New: | 4,066 | 4,066 |
| Program Coverage: | Enrolled on Rolls Royce Corporate Care | |
APU
| Manufacturer: | Honeywell |
| Model: | RE220 |
| Serial Number: | P-431 |
| Total Time Since New: | 7,542 Hours |
| Program Coverage: | Enrolled on Honeywell MSP Gold |

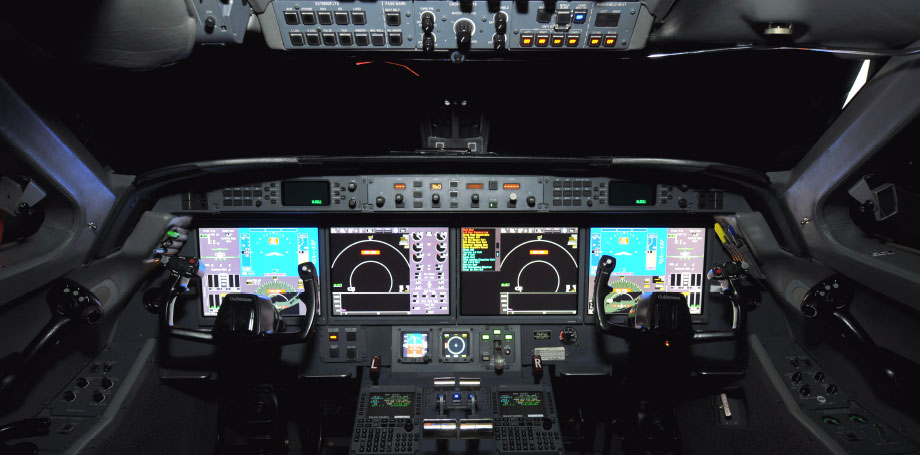

AVIONICS
| HONEYWELL PRIMUS PLANEVIEW | |
| EFIS (Electronic Flight Instrument System): | Honeywell DU-1310 Flat Panel Display Units |
| HUD (Heads Up Display): | Single Honeywell Visual Guidance System |
| EVS (Enhanced Vision System): | Single Honeywell / Kollsman EVS |
| FMS (Flight Management System): | Triple Honeywell MC-850 |
| GPS (Global Positioning System): | Dual Honeywell CMA-4024 |
| DMU (Data Management Unit): | Single Honeywell |
| NAV (Navigation Radio): | Triple Honeywell lR-500 LASEREF V |
| DME (Distance Measuring Equipment): | Dual Collins DM-855 |
| ADF (Automatic Direction Finder): | Dual Collins DF-855 |
| ELT (Emergency Location Transmitter): | Single Artex C406-2 with 3 Frequencies (406MHz) |
| EGPWS (Enhanced Ground Proximity Warning): | Dual Honeywell (Bendix/King) EPGWM-100 |
| ADM (Air Data Modules): | Triple Honeywell AZ-200 |
| VHF COM (Very High Freq. Communication): | Triple Honeywell TR-865A (Dual) NV-875A (Single) |
| HF COM (High Freq. Communications): | Dual Collins HF-9034A |
| AFCS (Auto Flight Control System): | Single Auto Throttle |
| COLOR RADAR: | Single Honeywell WU-880 |
| RADAR ALT (Radar Altimeter): | Dual Honeywell RT-300 |
| XPNDR (Transponder): | Dual Honeywell XS-857A w/ Mode S |
| Flight Director: | Single Honeywell GP-500 |
| TCAS (Traffic Collision Avoidance System): | Single TCAS-2000 |
| CVR (Cockpit Voice Recorder): | Single L3 Communications FA2100 |
| FDR (Flight Data Recorder): | Single Digital Flight Recorder (88 Parameter) |
| MAU (Modular Avionics Unit): | Dual Honeywell MAU-16U |
| IRS (Inertial Reference System): | Triple Honeywell lR-500 LASEREF V |
AIRCRAFT SERVICE CHANGES (ASCs)
- ASC 911A Plane View
- ASC 013A Avionics Enhancement
- ASC 112 Elevator Hardover Prevention System (HOPS)
- ASC 105A Automatic Surveillance Broadcast (ADS-B Out) Installation
- ASC 104 Aileron Cable Penetrations at FS 576.5 Floor Beam Rework
- ASC 103 TCAS 7.1 Installation
- ASC 099A Aileron and Elevator Power Disconnect-Removal
- ASC 096 CPDLC / FANS-1/A
- SC 094B Landing Gear Door Close-Restrictor
ENTERTAINMENT & CONNECTIVITY
- New state-of-the-art DPI Labs ‘Evolve’ Cabin Management System which interfaces with AVDS HD video backbone, Alto Audio with Sky Cinema Dolby, and a Flight Map 3D moving map system
- Viasat KA Band High Speed SATCOM w/ Honeywell GDR Router installed 2022 by Brunswick Aviation
- Apple TV
- Two Rosen 4K 24” Monitors
- Blu Ray
- Two HDMI Inputs
- Three Subwoofers
- Full RGB LED lighting by Aircraft Lighting International

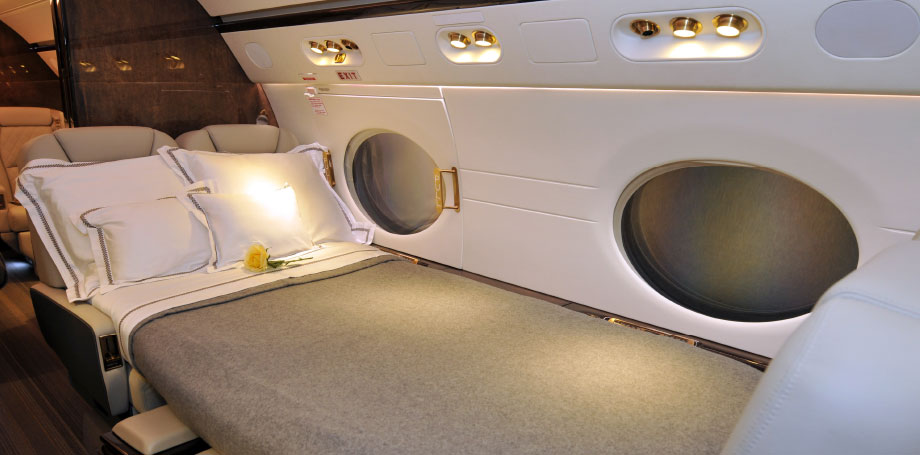

INTERIOR
| Floorplan: | Fourteen (14) Passenger Executive Configuration Mid Cabin Divider with Pocket Door |

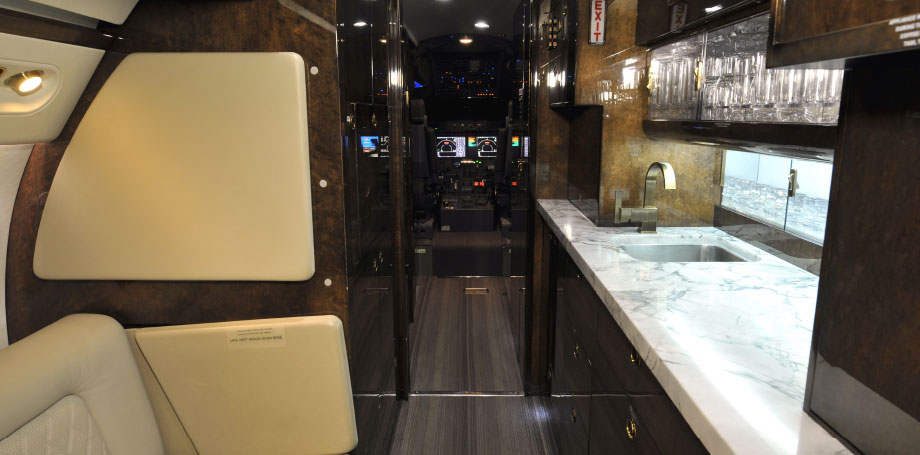

| Galley: | Forward |

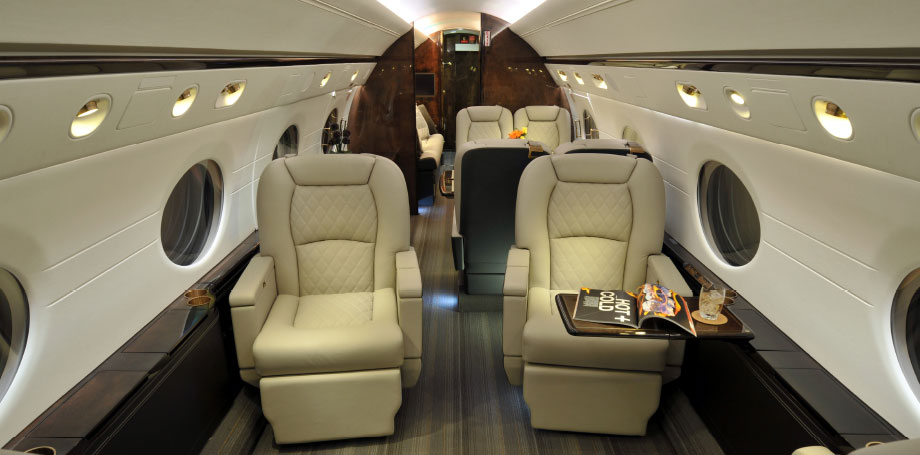

| Forward Cabin: | Four (4) Place Executive Club |

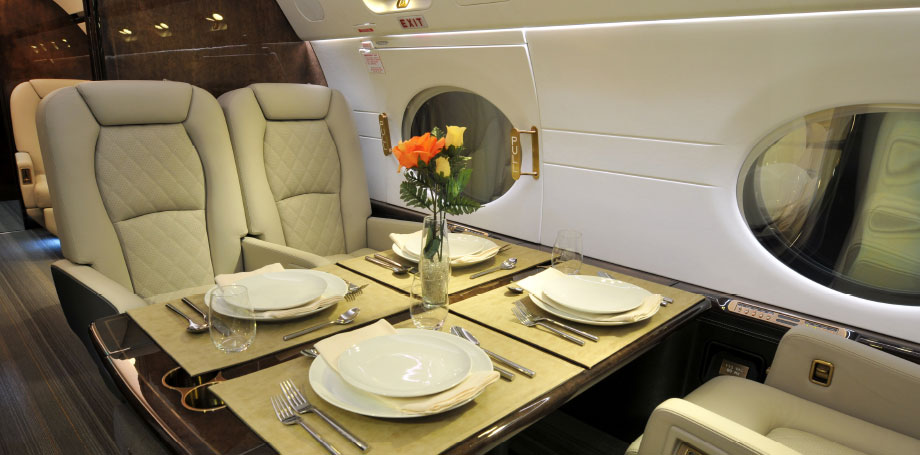

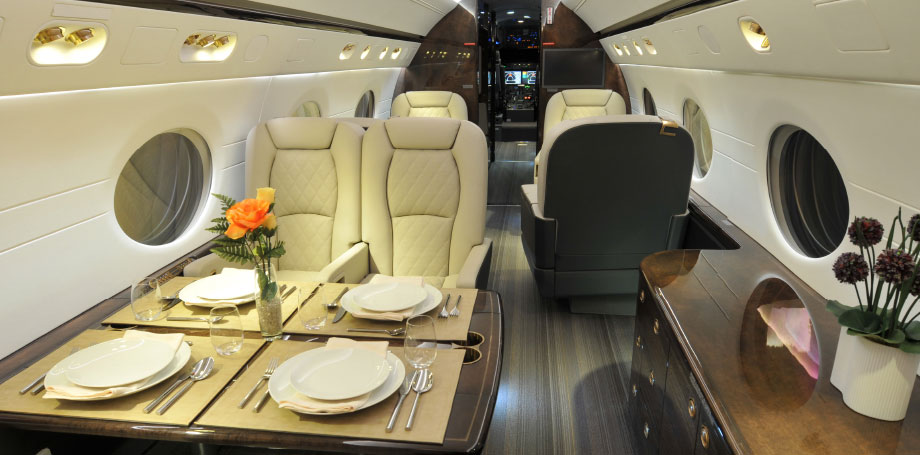

| Mid Cabin: | Four (4) Place Conference Group opposite a Credenza |

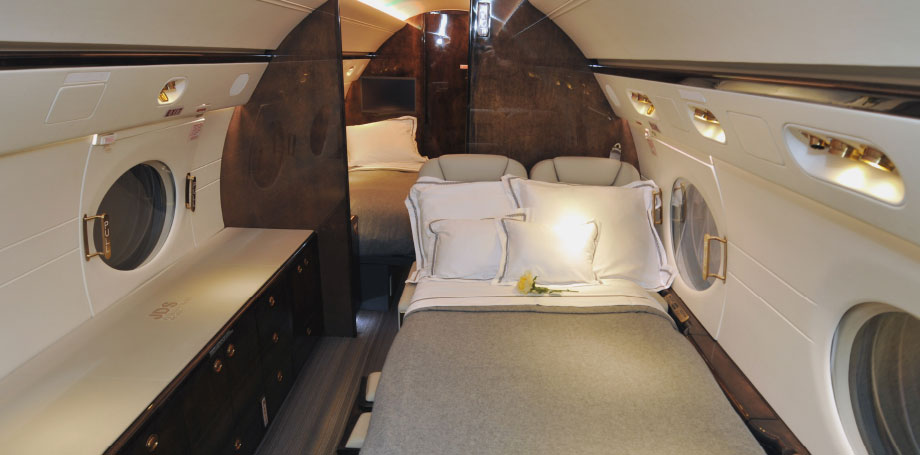

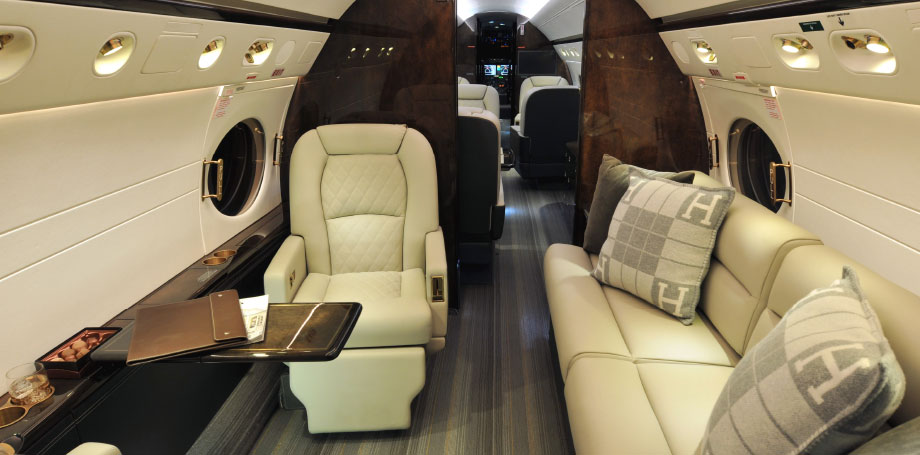

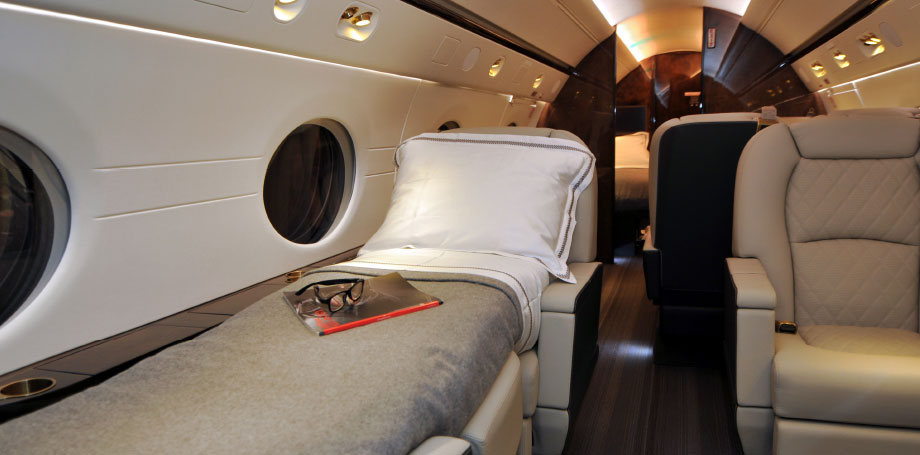

| Aft Cabin: | Two (2) Place Club opposite a Four (4) Place Divan |
| Lavatories: | Forward Crew Lavatory & Full Aft Lavatory |

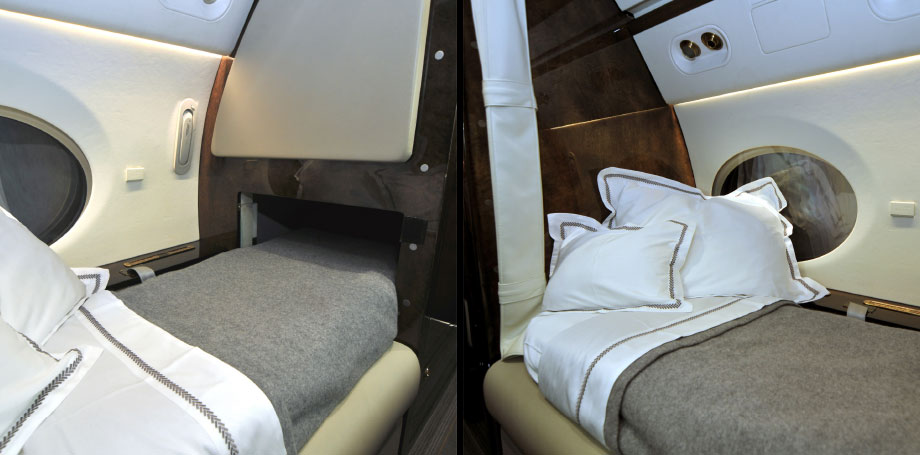

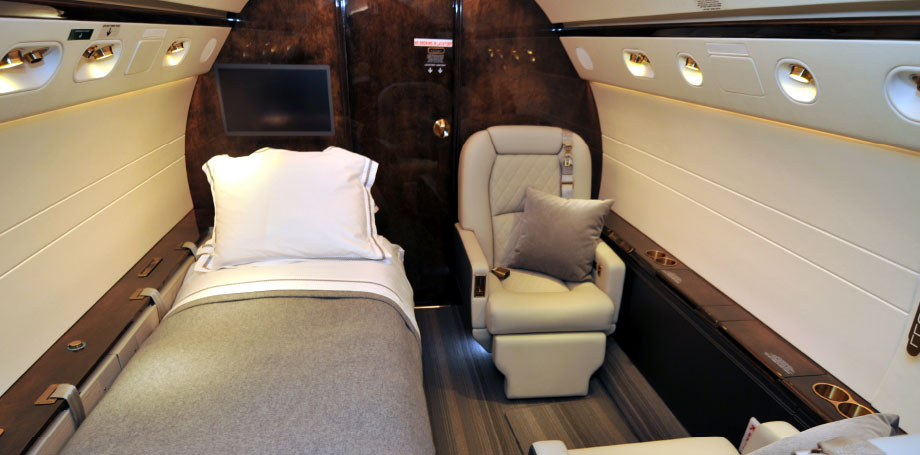

| Crew Rest: | Forward |
| Last Refurbished: | Seats, Windowline, Carpet, Dados and Countertops 2022 by International Jet Interiors |

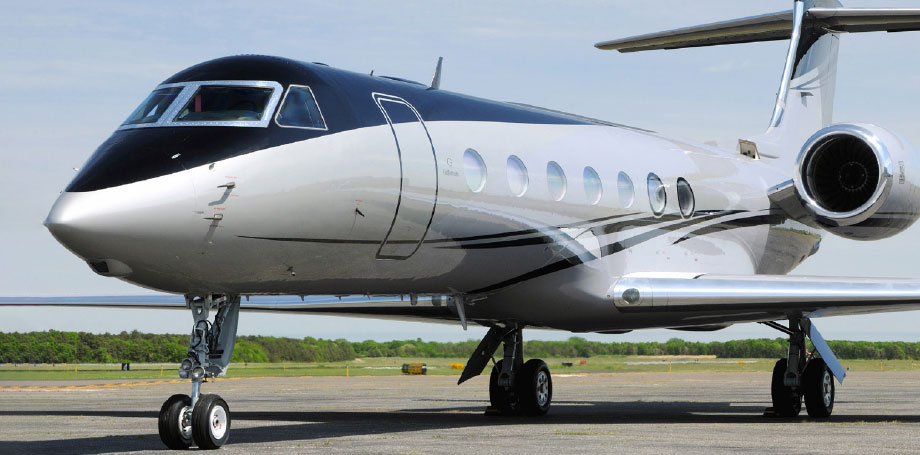

EXTERIOR
- New paint 2022 by Duncan Aviation
MAINTENANCE
- Will deliver with a fresh 48 Month Inspection
- 192 Month Inspection completed 2022

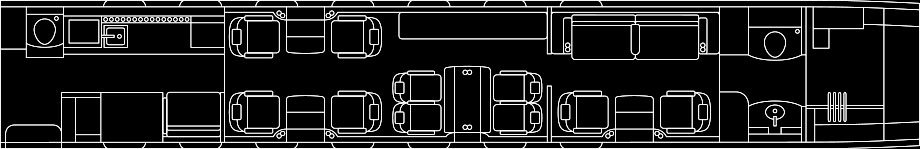

FLOORPLAN
